- Stock: In Stock
- Brand: Garmin
- Model: 65sv
- Delivery: 5-7 working days
Advanced Sonar and Navigation System for Serious Anglers

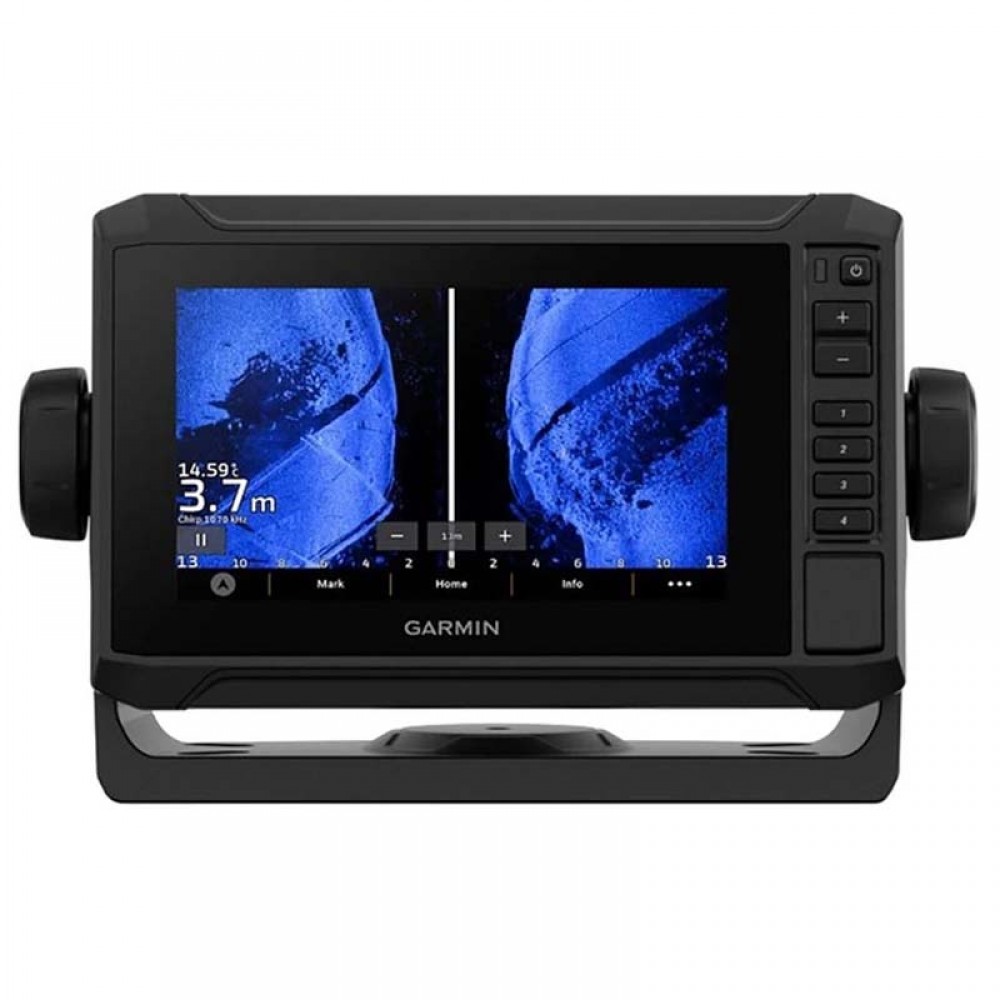

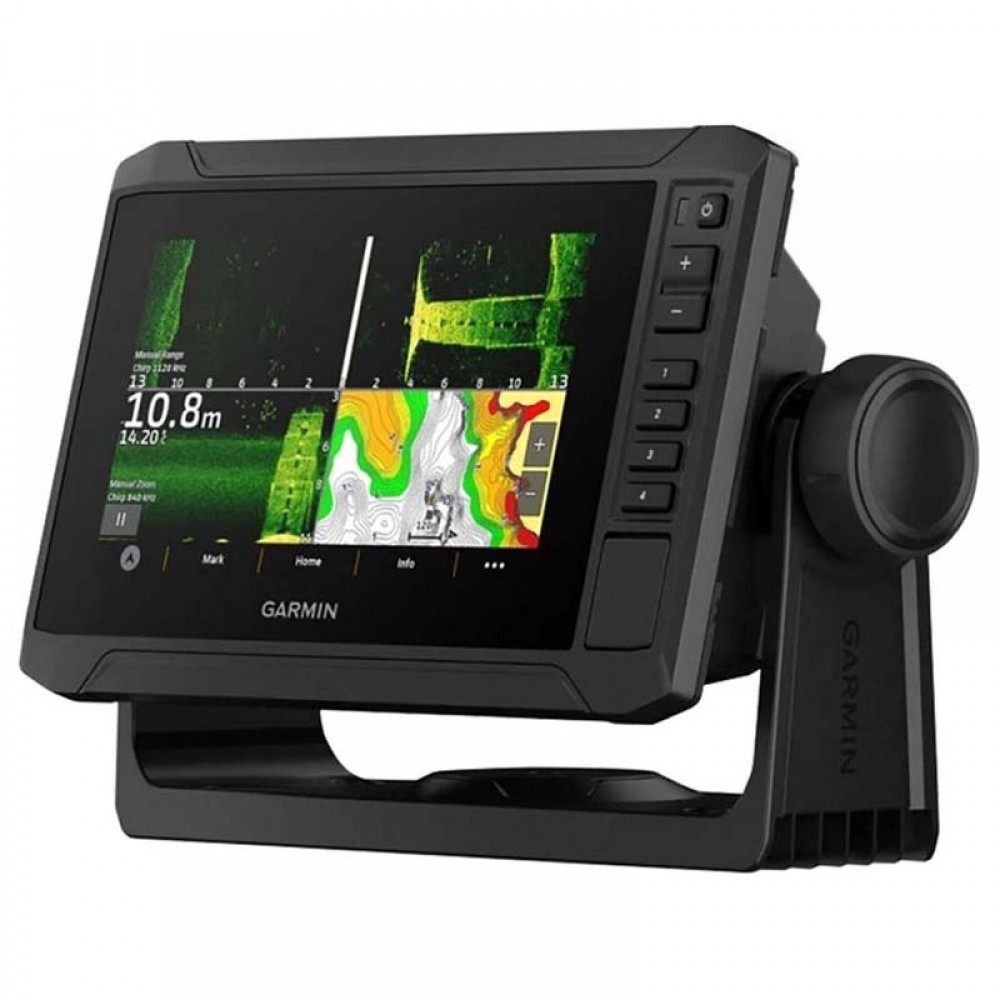

Know the water better than a local with the Garmin ECHOMAP UHD2 65sv 6” GPS/Fishfinder. This powerful, all-in-one marine tool offers crisp sonar, built-in Navionics+ charts, and seamless wireless connectivity — all on a bright, sunlight-readable 6" touchscreen display with keyed-assist. Whether you’re hunting drop-offs, scanning for structure, or tracking a school, the ECHOMAP UHD2 gives you the edge.
Key Features
Bright 6" WVGA touchscreen display with keyed assist for easy navigation
High-contrast ClearVü and SideVü scanning sonar with GT54 transducer included
Traditional CHIRP sonar for clear target separation
Multi-band GNSS support (GPS, GLONASS, Galileo, BeiDou) for superior accuracy
Built-in Garmin Navionics+ charts (NZ/AU coastal & inland) with 1-year subscription
Auto Guidance+ downloadable routing via ActiveCaptain app
Wireless networking lets you share sonar, waypoints & routes between units
Wi-Fi + Bluetooth + ANT+ connectivity
Supports LiveScope & Panoptix sonar for real-time underwater views
Compatible with Garmin Force trolling motor & Power-Pole CHARGE system
AIS, DSC, and Fusion-Link radio compatibility
NMEA 2000-ready and marine network capable
Specs
General
Product Code: 010-02682-20
Display: 6" WVGA touchscreen (800 x 480)
Dimensions: 20.6 x 13.1 x 6.7 cm
Weight: 0.8kg
Waterproof Rating: IPX7
Mounting Options: Bail or flush
Navigation & Charts
Preloaded Garmin Navionics+ (NZ/AU coastal & inland)
Auto Guidance+: Yes (downloadable)
Waypoints: 5000
Tracks: 50
Routes: 100
Memory: 1 microSD slot (up to 32GB)
GNSS & Sensors
GPS, GLONASS, Galileo, BeiDou
10Hz receiver
Multi-band signal accuracy
Sonar
Power Output: 500W
Traditional CHIRP: Yes (50/77/83/200 kHz)
ClearVü & SideVü: 260/455/800/1000/1200 kHz
Panoptix & LiveScope Compatible: Yes
GT54 Transducer Included
Networking & Connectivity
Garmin Marine Network Port: 1
NMEA 2000 & NMEA 0183 Compatible: Yes
Bluetooth / Wi-Fi / ANT+: Yes
Garmin CHARGE & Power-Pole integration: Yes
Electrical
Input Voltage: 9–18 VDC
Max Power Usage: 18.4W
Current Draw @12V: 1.53A (typical), 3.2A (max)
What’s Included
Garmin ECHOMAP UHD2 65sv Chartplotter
GT54-TM Transducer
Power Cable
Tilt/Swivel Mount with Quick-Release Cradle
Protective Cover
Mounting Hardware
Documentation
