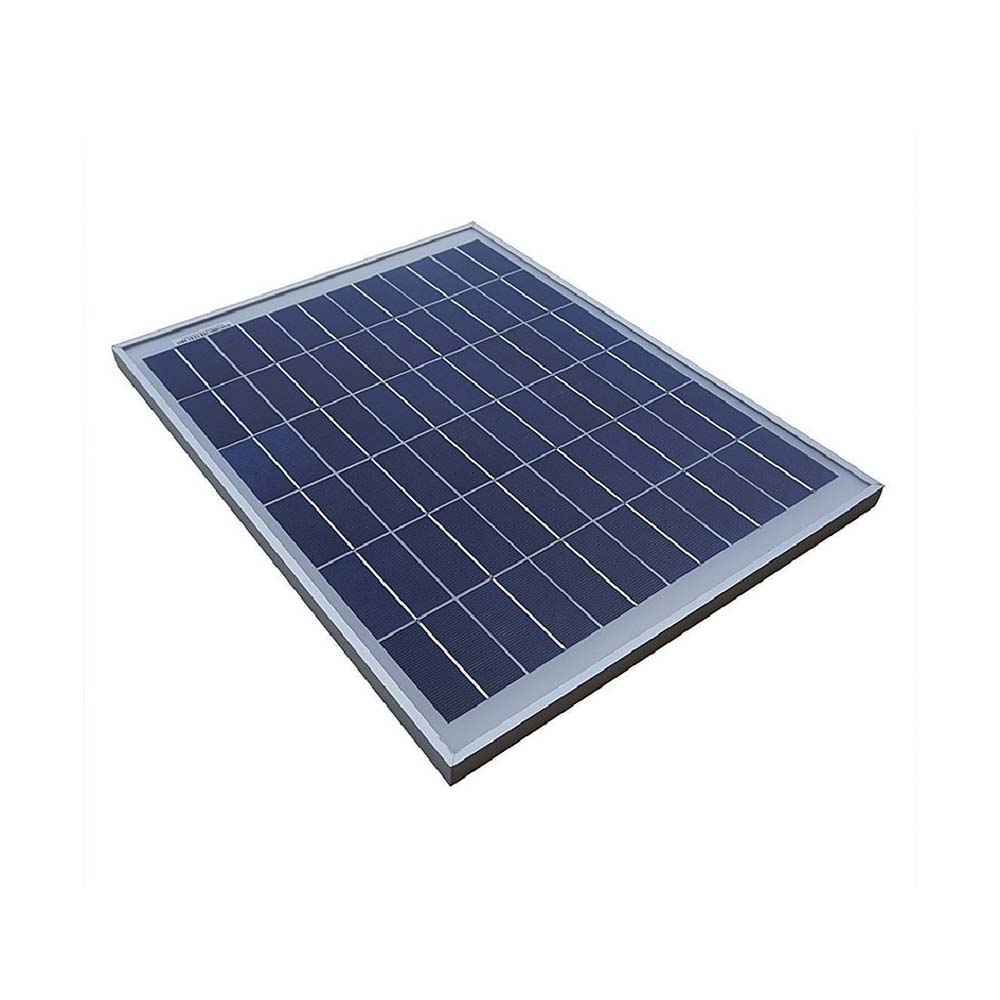

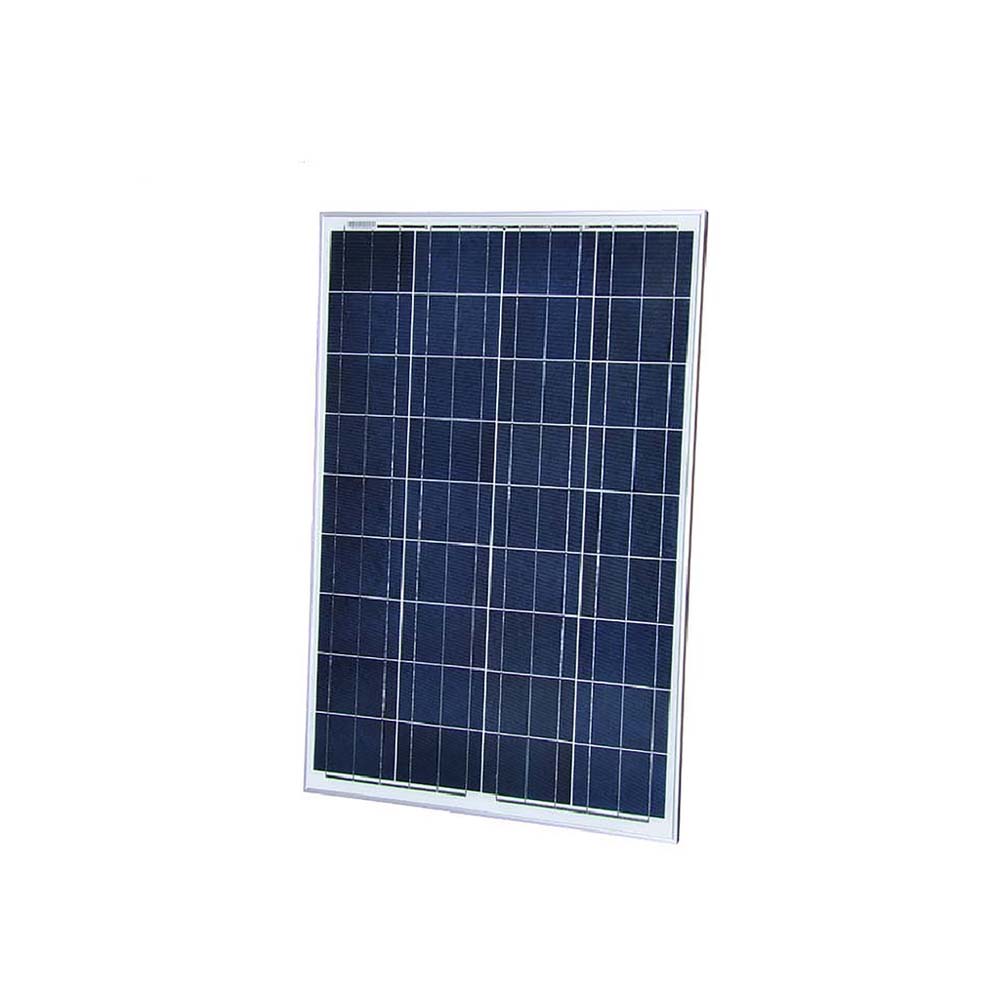

Victron 12V 90W Polycrystalline Solar Panel

Efficient Off-Grid Solar Panel for Mobile and Stationary 12V Systems

The Victron 12V 90W Poly Solar Panel is engineered to deliver high-efficiency solar charging for 12V battery systems. Whether you’re on the road, at sea, or living off the grid, this polycrystalline solar panel offers reliable, consistent power in a durable, easy-to-install format. Ideal for RVs, caravans, marine, camping, and remote cabins.

Key Features

• High-efficiency polycrystalline solar panel

• 90W output, perfect for 12V battery systems

• Durable silver anodized aluminium frame

• Triple-layer EVA backsheet enhances safety and durability

• Low voltage-temperature coefficient improves performance in heat

• Excellent low-light performance

• Sealed waterproof junction box for reliable outdoor use

• Equipped with high-performance bypass diodes

• Designed to work with PWM or MPPT controllers

• 5-year product warranty and 25-year power output warranty

Specs

• Module: SPP040901200

• Nominal Power (±3%): 90W

• Cell Type: Polycrystalline

• Number of Cells: 36

• Max System Voltage: 1000V

• Temperature Coefficient (PMPP): -0.45% / °C

• Temperature Coefficient (Voc): -0.35% / °C

• Temperature Coefficient (Isc): +0.04% / °C

• Temperature Range: -40°C to +85°C

• Surface Load Capacity: 200 kg/m²

• Allowable Hail Load: 23 m/s, 7.53 g

• Junction Box Type: PV-LH0801

• Cable/Connector: 900 mm / MC4

• Output Tolerance: ±3%

• Frame: Aluminium

• Product Warranty: 5 Years

• Performance Warranty: 10 years @ 90%, 25 years @ 80% output

• Dimensions: 780 x 668 x 30 mm

• Net Weight: 6.1 kg

Electrical Data Under STC:

• Nominal Power (PMPP): 90W

• Max Power Voltage (VMPP): 19.5V

• Max Power Current (IMPP): 4.61A

• Open Circuit Voltage (Voc): 23.44V

• Short Circuit Current (Isc): 4.98A

What’s Included

• 1 × Victron 12V 90W Poly Solar Panel

• Sealed waterproof junction box

• 900 mm pre-wired cable with MC4 connectors

• Integrated aluminium frame (roof mount–ready)
